Universal Parts

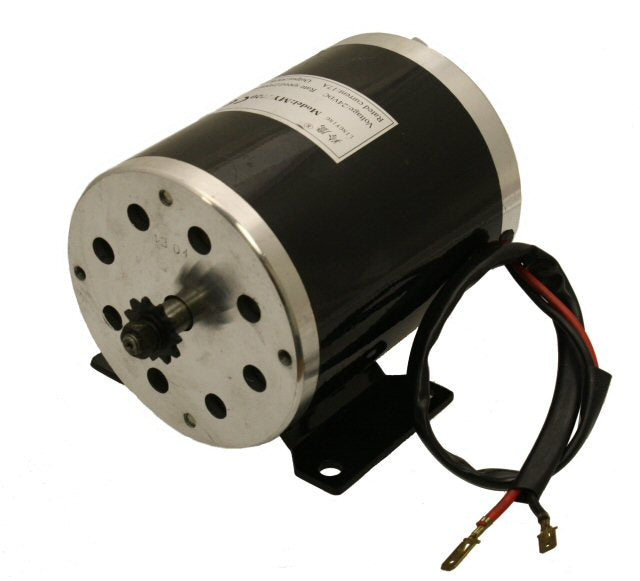

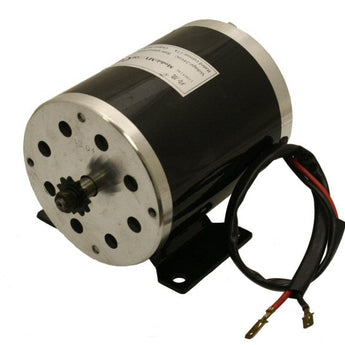

Universal Parts 24V, 500W Electric Motor with Bracket

SKU 220-56
$89.00
Shipping calculated at checkout.
Description
Universal Parts 500w, 24v chain drive electric motor with bracket. This electric motor is the most common motor found on 24v imported electric scooters.

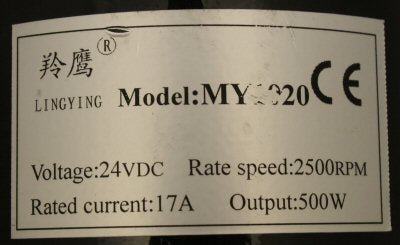

  • MY1020
  • 24 Volt DC
  • Output: 500 Watt
  • Chain Driven
  • 2800 RPM
  • 28 AMP

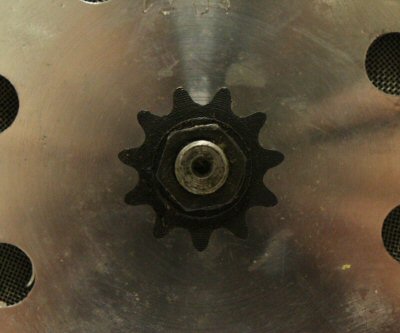

  • 11 Tooth Sprocket
  • Outer Diameter (shaft): 12mm
  • Outer Diameter (body of motor): 108mm
  • Overall Length (body of motor): 134mm
  • Shaft Length: 24mm
  • Diagonal Bolt Hole Spacing (bracket): 116mm
Product Diagrams
