NCY 33mm PTFE Intake Manifold - Genuine 50/110cc 2T

SKU 1100-1292
$67.00
Shipping calculated at checkout.
Description

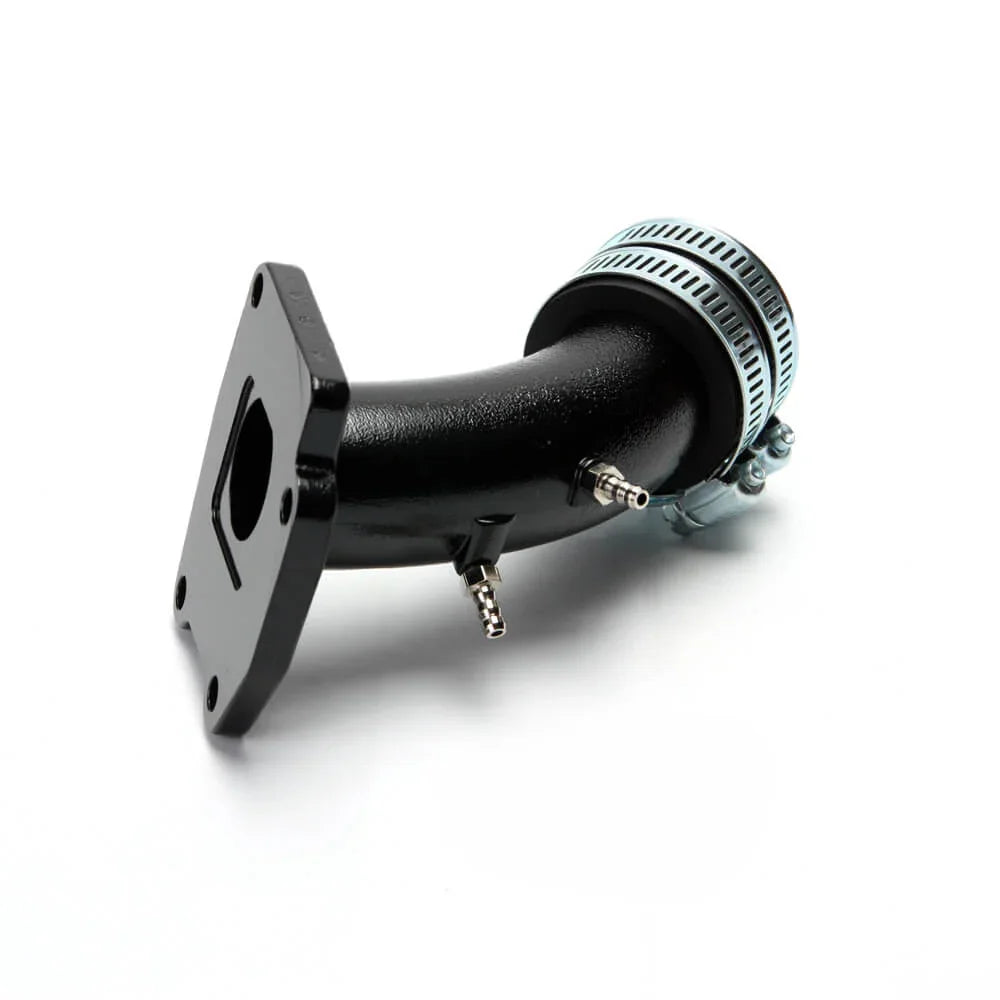

Give your Genuine two-stroke a freer-breathing intake and sharper throttle response with this NCY 33mm PTFE-coated performance intake manifold. Its smooth-bore design helps reduce intake turbulence and fuel pooling, making it a strong foundation for a larger carburetor or cylinder kit on your Buddy 50, RoughHouse 50, Rattler 50/110, or Black Cat 50.

Key Features

  • PTFE-coated construction: Low-friction coating promotes intake flow and helps resist heat soak from the engine case.
  • 33mm carburetor flange: Designed for compatible aftermarket carburetors with 24–30mm bore sizes.
  • Dual vacuum/EGR ports: Provides connections for compatible factory plumbing and vacuum-operated fuel petcocks.
  • Installation hardware: Includes two stainless-steel clamps and a 31mm-ID O-ring to help seal the connections.
  • Performance upgrade foundation: Supports increased airflow for larger-carburetor and cylinder-kit builds.

Technical Specifications

  • Brand: NCY
  • Part number: 1100-1292
  • Part type: Performance intake manifold
  • Material: Cast aluminum with PTFE coating
  • Intake mount outside diameter: 33mm
  • Compatible carburetor bore range: 24–30mm, with matching mounting dimensions
  • Vacuum/EGR ports: Two; 2.4mm inside diameter, 4.6mm outside diameter
  • Included hardware: Two stainless-steel clamps and one 31mm-ID O-ring
  • Base gasket: Not included
  • Country of origin: Taiwan
  • Manufacturer certification: ISO 9001

Compatibility

Make Model Engine Years
Genuine Buddy 50 50cc two-stroke All years
Genuine RoughHouse 50 50cc two-stroke All years
Genuine Rattler 50 50cc two-stroke —
Genuine Rattler 110 110cc two-stroke —
Genuine Black Cat 50 50cc two-stroke —



Installation

Match the carburetor's mounting dimensions to the 33mm intake flange; carburetor bore size alone does not determine fit. Base gasket not included. Install a new Genuine OEM reed valve gasket P1261021000.

Performance upgrades are considered racing parts and are not covered by warranty. Not legal for use in California on pollution-controlled vehicles. Check local laws before installing.

This product is intended for off-road use only. This product is not intended for use on public roads or land.

Product Diagrams
Features
  • PTFE-coated smooth-bore interior — maximizes air velocity and prevents fuel pooling
  • 33mm carb flange — fits aftermarket carbs with 24-30mm bore sizes
  • Dual vacuum/EGR ports (2.4mm ID) for factory emissions and petcock compatibility
  • Includes 2x SS clamps and 31mm ID O-ring for leak-free installation
  • Base gasket not included — pair with NCY Intake Gasket SKU 1100-4020
Specifications

Part number: 1100-1292; Material: cast aluminum with PTFE coating; Intake mount OD: 33mm; Compatible carburetor bore range: 24–30mm with matching mount; Vacuum/EGR ports: two, 2.4mm ID and 4.6mm OD; Hardware: two stainless-steel clamps and one 31mm-ID O-ring; Base gasket: not included; Origin: Taiwan; Manufacturer certification: ISO 9001

Model Fitments

Genuine Buddy 50 (all years), Genuine RoughHouse 50 (all years), Genuine Rattler 50, Genuine Rattler 110, Genuine Black Cat 50; two-stroke models only; compatible aftermarket carburetor mount required; base gasket not included
