NCY N-20 Performance CVT Clutch - GY6 Navi Zuma PCX

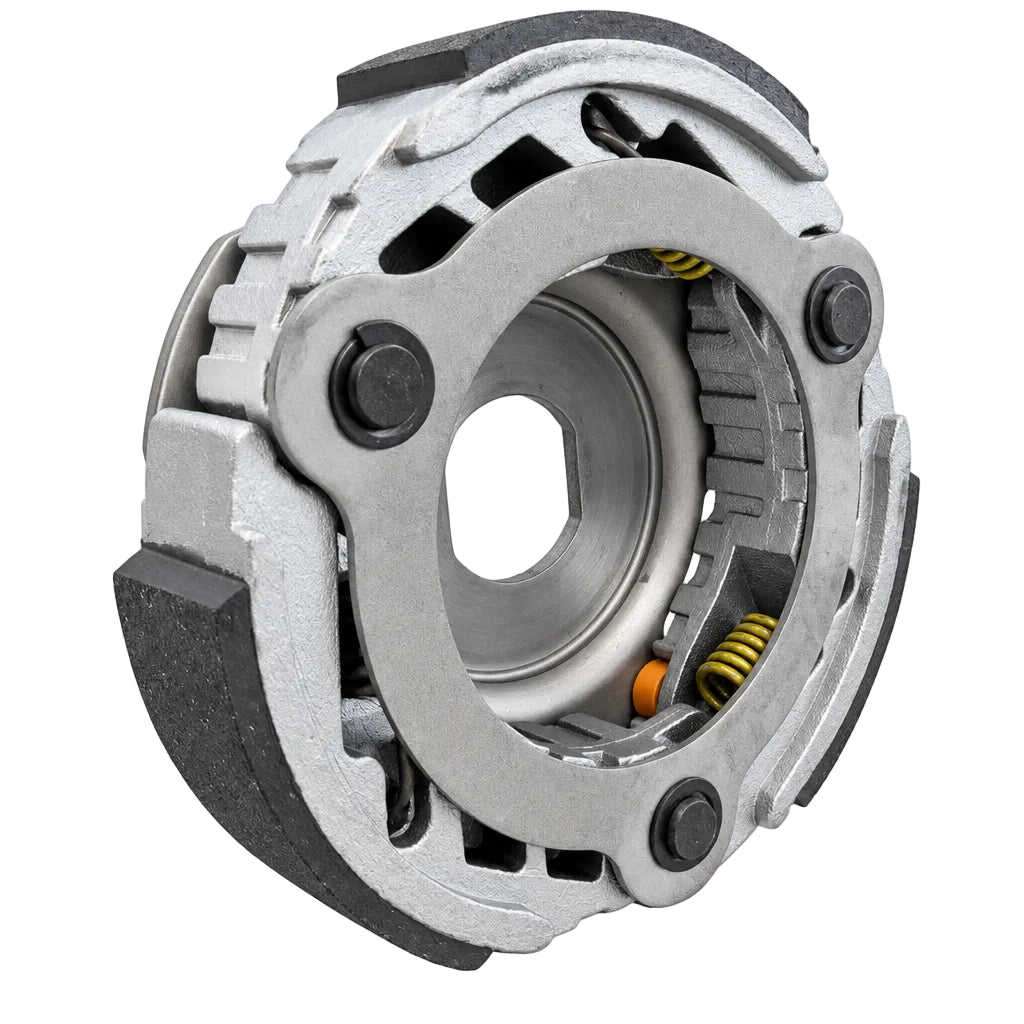

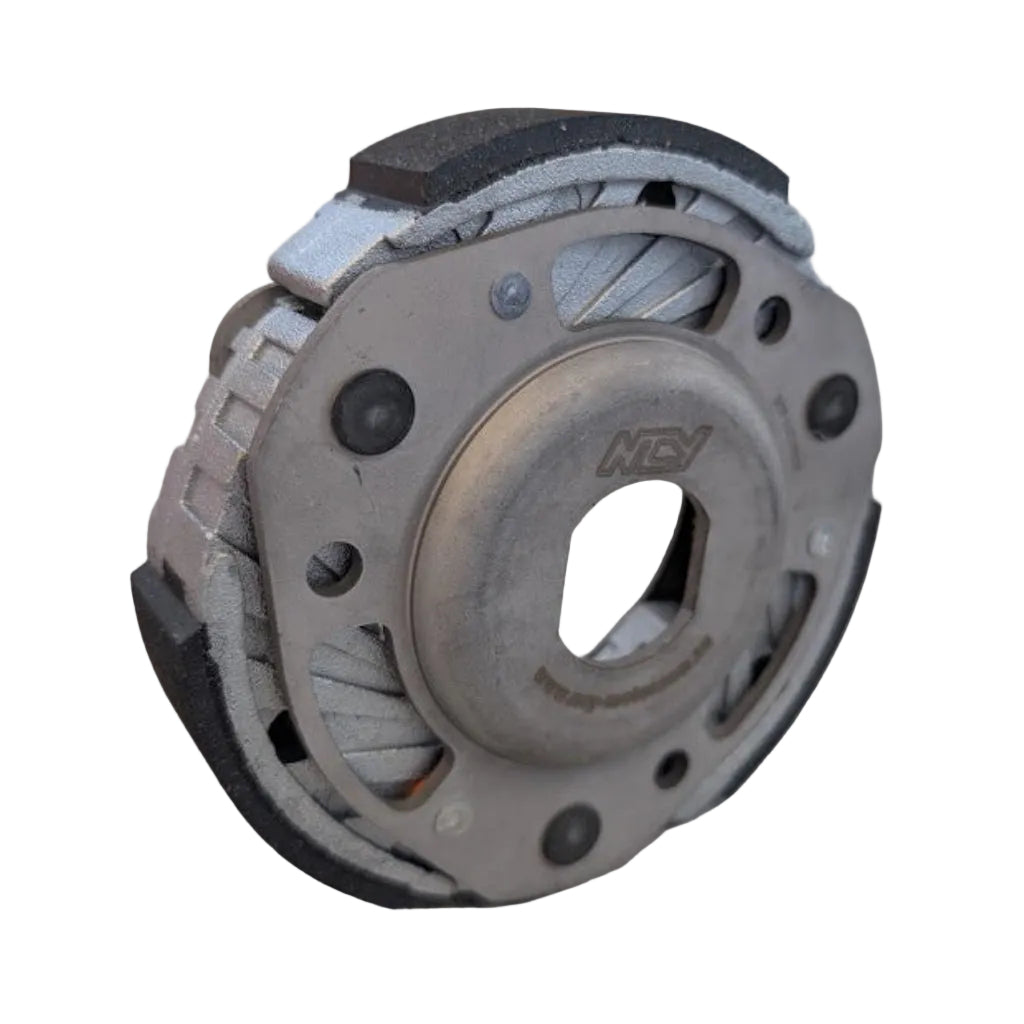

This NCY Racing Clutch (SKU 1200-1290) is a three-shoe centrifugal performance clutch for 110cc to 170cc CVT scooters. Oversized shoes with a high-temp semi-metallic lining bite earlier and hold harder than a stock unit, cutting engagement lag off the line and resisting the slip and fade that show up under heat or hard riding. The lightened carrier reacts faster to throttle input, and the assembly is designed to run with a vented clutch bell so heat pulls away from the friction pads.

Key Features

• Oversized clutch shoes: Larger contact area against the clutch bell reduces glaze and extends transmission component life.
• High-friction lining: Semi-metallic compound holds grip at high RPM and resists fade during heavy or long-distance riding.
• Lightened carrier frame: Reinforced but lightweight backing plate reacts faster to throttle inputs.
• Heat-dissipating design: Built to pair with vented clutch bells to draw heat away from the pads and prevent stuttering on hard launches.

Technical Specifications

• Clutch type: 3-shoe centrifugal racing clutch
• Lining material: High-temp semi-metallic
• Weight: 975g (2.15 lbs)
• Pad dimensions: 61mm x 24.8mm
• Spring rate: 1000 RPM (standard NCY yellow)
• Outer diameter: 120mm - 125mm (standard large-style)
• Manufacturer: NCY Taiwan (aftermarket)

Compatibility

Installation Notes

For maximum performance and longevity, pair this clutch with a lightened and vented clutch bell. Clean the clutch bell with brake cleaner to remove old oil and belt dust before installing new shoes, so the friction material beds in properly.

This product is intended for off-road use only. This product is not intended for use on public roads or land.

• Oversized Clutch Shoes
• High-Temp Semi-Metallic Lining
• Lightened Carrier Frame
• 1000 RPM Spring Rate (NCY Yellow)
• 120mm-125mm Standard Large-Style Outer Diameter
• 975g (2.15 lbs) Assembly Weight
• 61mm x 24.8mm Clutch Pad Dimensions

Part Number: 1200-1290 | Clutch Type: 3-Shoe Centrifugal Racing Clutch | Lining: High-Temp Semi-Metallic | Weight: 975g (2.15 lbs) | Pad Dimensions: 61mm x 24.8mm | Spring Rate: 1000 RPM (NCY Yellow) | Outer Diameter: 120mm-125mm | Manufacturer: NCY Taiwan

Yamaha Zuma 125 (2022+), Honda PCX 125/150, Honda Navi 110, GY6 125/150cc (152QMI/157QMJ), Genuine Buddy 125/150/170i
