Green Line 67.2V 10A UL Premium Fast Charger - LP20 5-Pin

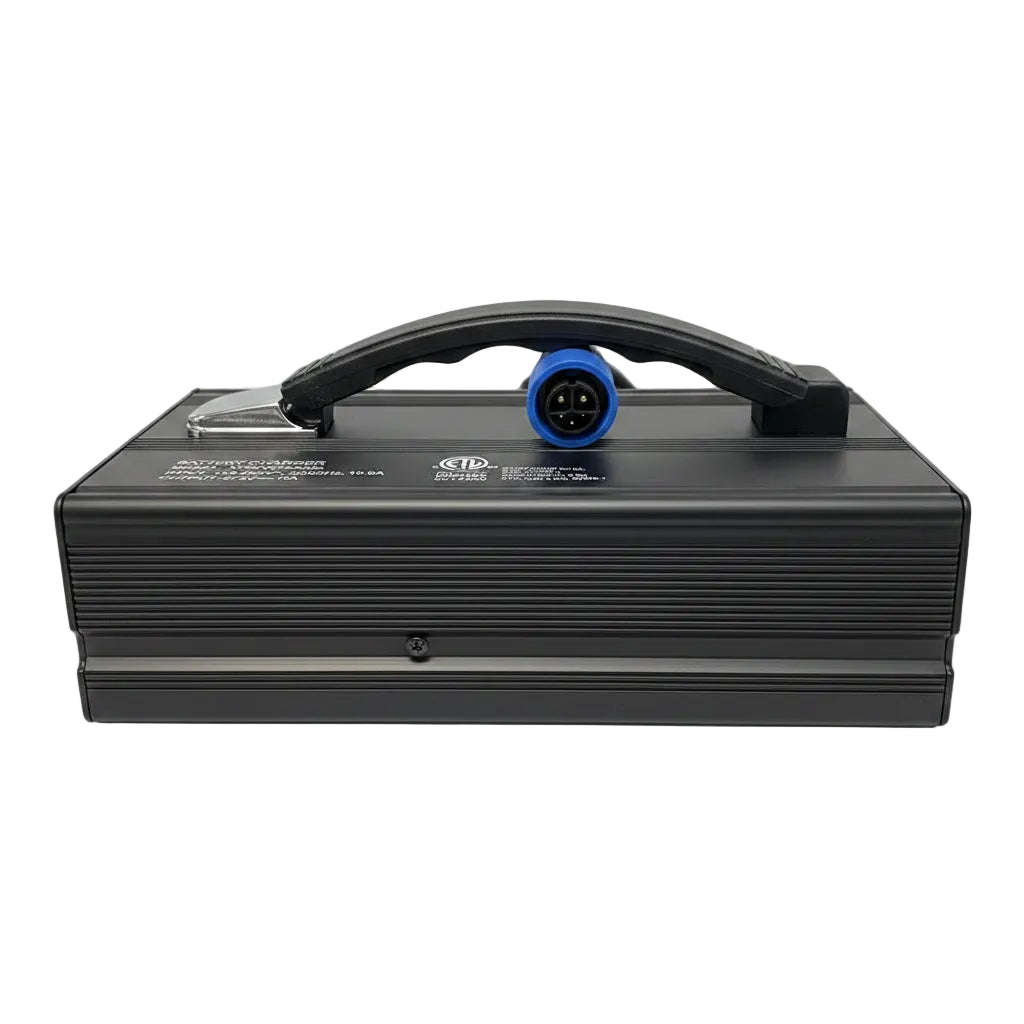

Charge your 60V lithium-ion system faster with the Green Line 67.2V 10A UL Listed Premium Fast Charger. This heavy-duty unit delivers 10A output to 16S (60V nominal) Li-ion battery packs via the blue LP20 5-pin locking connector (2 large power pins + 3 smaller signal pins). The ribbed aluminum housing and internal cooling fan dissipate heat during high-current charging sessions, and the integrated carry handle makes it easy to move between vehicles. LED indicator shows red while charging and green when fully charged. Includes a separate IEC AC power cord. ETL Listed (Intertek), conforms to UL STD. 62368-1 and CSA STD. C22.2 No. 62368-1.

Compatibility Check: This charger is for 60V nominal (16S) Lithium-ion battery packs only. Output voltage is 67.2V DC at peak charge. Do not use with 72V (20S), 48V, or 52V systems — verify your battery cell count before connecting.

Key Features

• 67.2V 10A Output: High-current fast charging for 60V nominal (16S) Li-ion packs.
• ETL/UL Listed: Intertek certified, conforms to UL 62368-1 and CSA C22.2 No. 62368-1. Overcharge, overheat, and short-circuit protection.

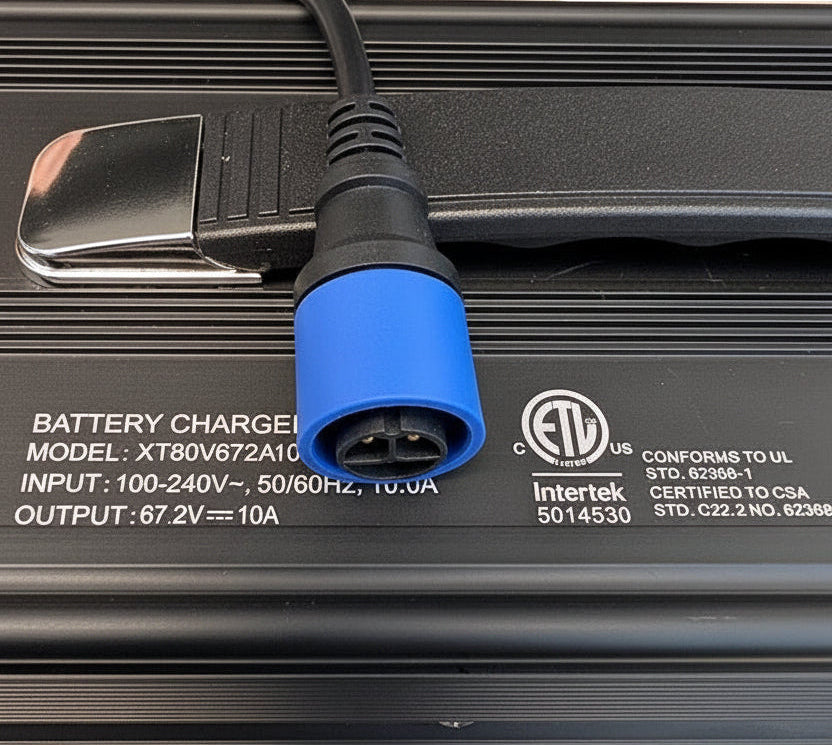

• Blue LP20 5-Pin Locking Connector: 2 large power pins + 3 smaller signal/ground pins. Secure aviation-style locking collar.
• LED Charge Indicator: Red = charging, Green = fully charged.
• Ribbed Aluminum Housing: Passive cooling fins and internal cooling fan for thermal management during high-current charging.
• Integrated Carry Handle: Top-mounted handle for transport and storage.
• Universal AC Input: 100–240V~ 50/60Hz — compatible with US and international AC power. IEC C14 inlet with separate power cord included.

Technical Specifications

• Model: XT80V672A100
• Output Voltage: 67.2V DC (peak charge)
• Compatible Battery: 60V nominal (16S) Lithium-ion
• Output Current: 10A
• AC Input: 100–240V~ 50/60Hz, 10A (IEC C14, cord included)
• Connector: LP20 5-Pin Male (blue) — 2 large power + 3 small signal pins
• LED Indicator: Red (charging) / Green (fully charged)
• Certifications: ETL Listed (Intertek 5014530), UL STD. 62368-1, CSA C22.2 No. 62368-1, FCC, CE
• SKU: 0900-6005

Compatible Models

• Talaria Sting MX3 (60V stock battery, LP20 5-pin port)
• Talaria Sting R MX4 (60V stock battery, LP20 5-pin port)
• Sur-Ron Light Bee X (60V, LP20 5-pin port)

Verify your vehicle’s battery nominal voltage (60V / 16S) and charging port type (LP20 5-pin) before ordering.

• 67.2V 10A Output for 60V Nominal 16S Li-Ion Packs
• UL Listed Overcharge Overheat and Short Circuit Protection
• Blue LP20 5-Pin Locking Aviation-Style Connector
• Ribbed Aluminum Housing with Passive Cooling Fins
• Integrated Top Carry Handle
• IEC C14 AC Inlet with Separate Power Cord Included
• Fits Talaria Sting MX3, Sting R MX4, Sur-Ron Light Bee X (60V LP20 5-Pin Port Models)

Model: XT80V672A100 | Output: 67.2V DC / 10A | Battery: 60V nominal 16S Li-ion | Input: 100-240V~ 50/60Hz 10A IEC C14 | Connector: LP20 5-pin male blue (2 power + 3 signal) | LED: Red charging / Green full | Certs: ETL/UL 62368-1 / CSA / FCC / CE | SKU: 0900-6005

Talaria Sting MX3 (60V LP20), Talaria Sting R MX4 (60V LP20), Sur-Ron Light Bee X (60V LP20) — verify battery voltage (60V/16S) and connector type before ordering
