Universal Parts 24V, 350W Motor for Razor RSF350 & MX350 (V1-8)

SKU 119-278
$60.00 Sold out
Shipping calculated at checkout.
Description

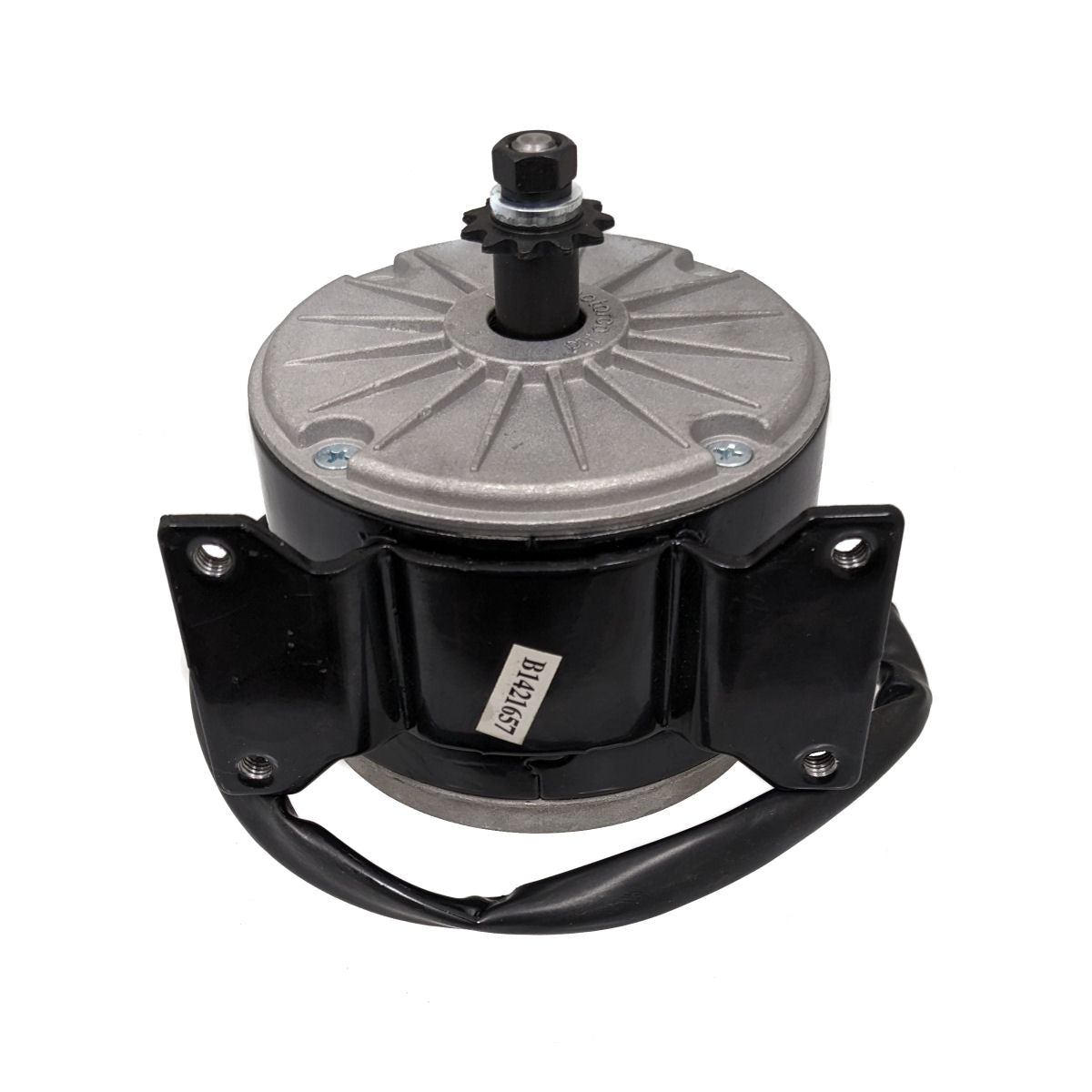

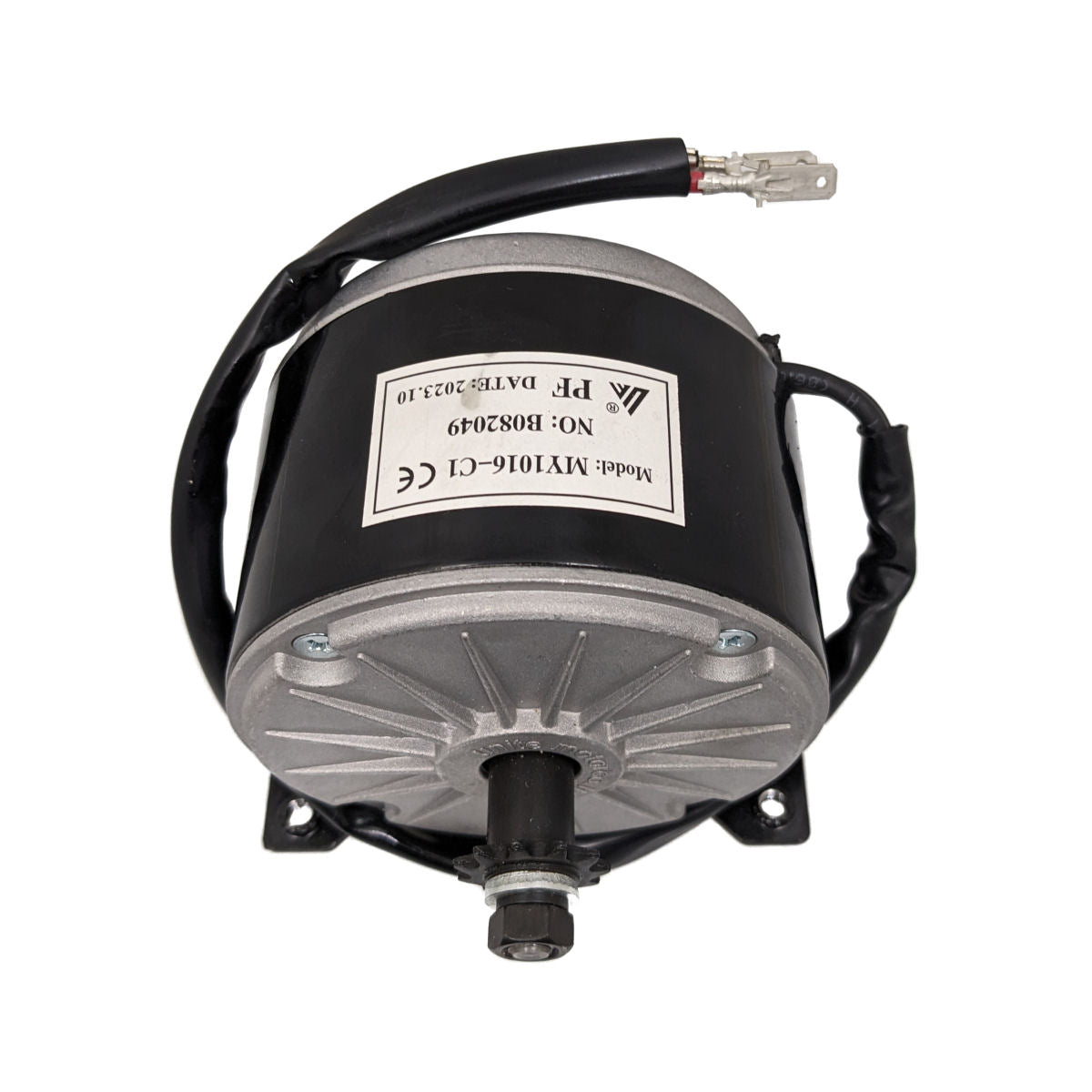

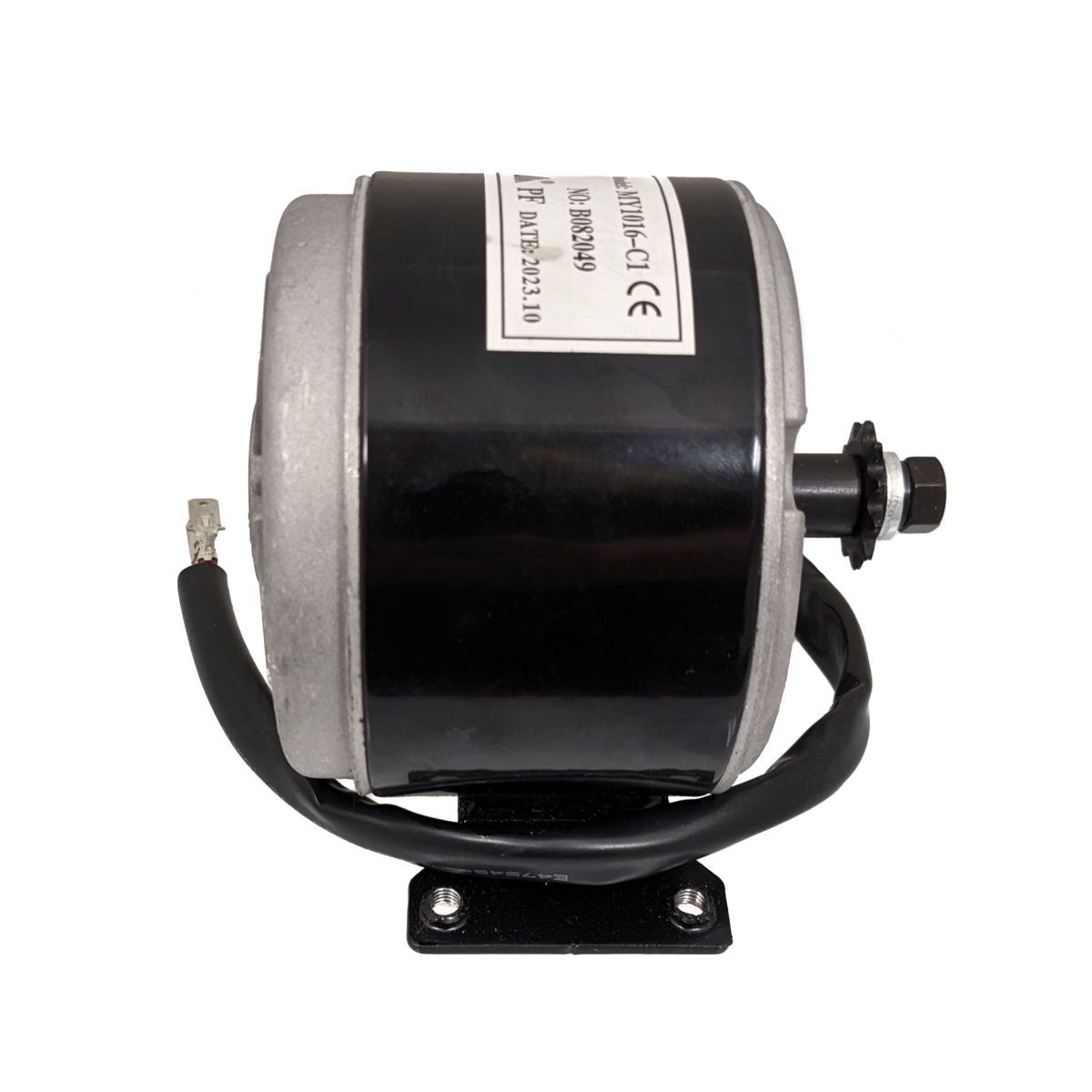

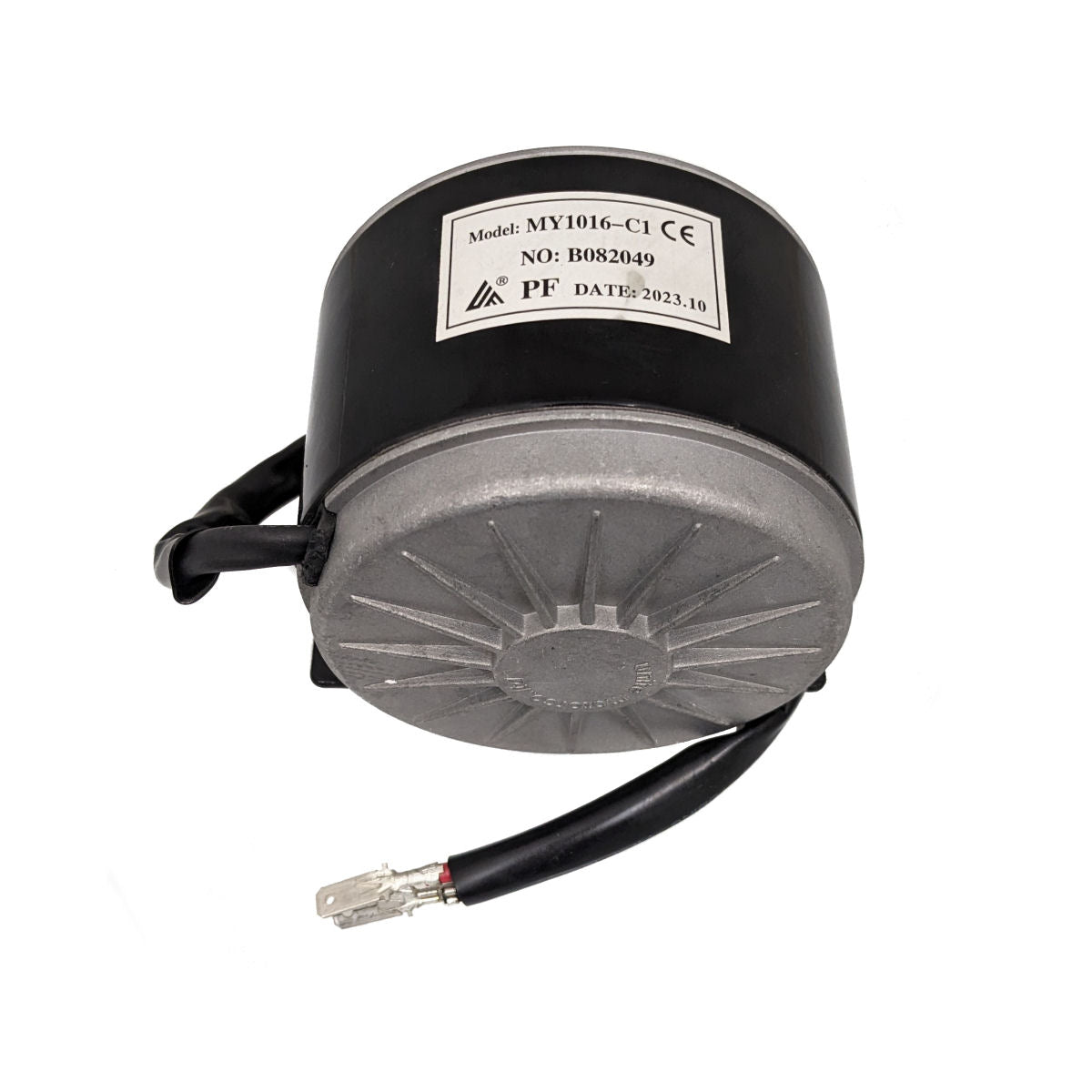

Universal Parts 24V, 350w MY1016-C1 chain drive electric brush motor for Razor RSF350 Electric Sport Bike, Razor iMod and MX350 Dirt Rocket (Versions 1-8).

NOTE: This motor is capable of rotating either clockwise or counterclockwise if the power wires are reversed.

Specifications:

  • MY1016-C1 Motor
  • 350 Watt
  • 24 Volt
  • 11 Tooth Sprocket
  • Uses #25 Chain
  • Torque Rating: 1.20 Nm
  • 2750 RPM
  • Bracket Hole Spacing (left to right): 95mm
  • Bracket Hole spacing (front to back): 42mm
  • Overall Length: 110mm
  • Overall Width: 116mm
  • Overall Height: 106mm
  • Wire Length Including Connectors: 15 inches
  • Compatible with Razor #W15128040030
  • Left or Right Rotation by Reversing Wires

Compatibility:

Razor RSF350 Electric Sport Bike Razor iMod
Razor MX350 Dirt Rocket (Versions 1-8)

About Universal Parts: Universal Parts is a line of quality and affordable replacement parts for Chinese scooters! From basic items like bearings and cables all the way up to complete engine assemblies and affordable big bore kits, the comprehensive Universal Parts line can help you get your scooter riding again.
