Vee Tire Co.

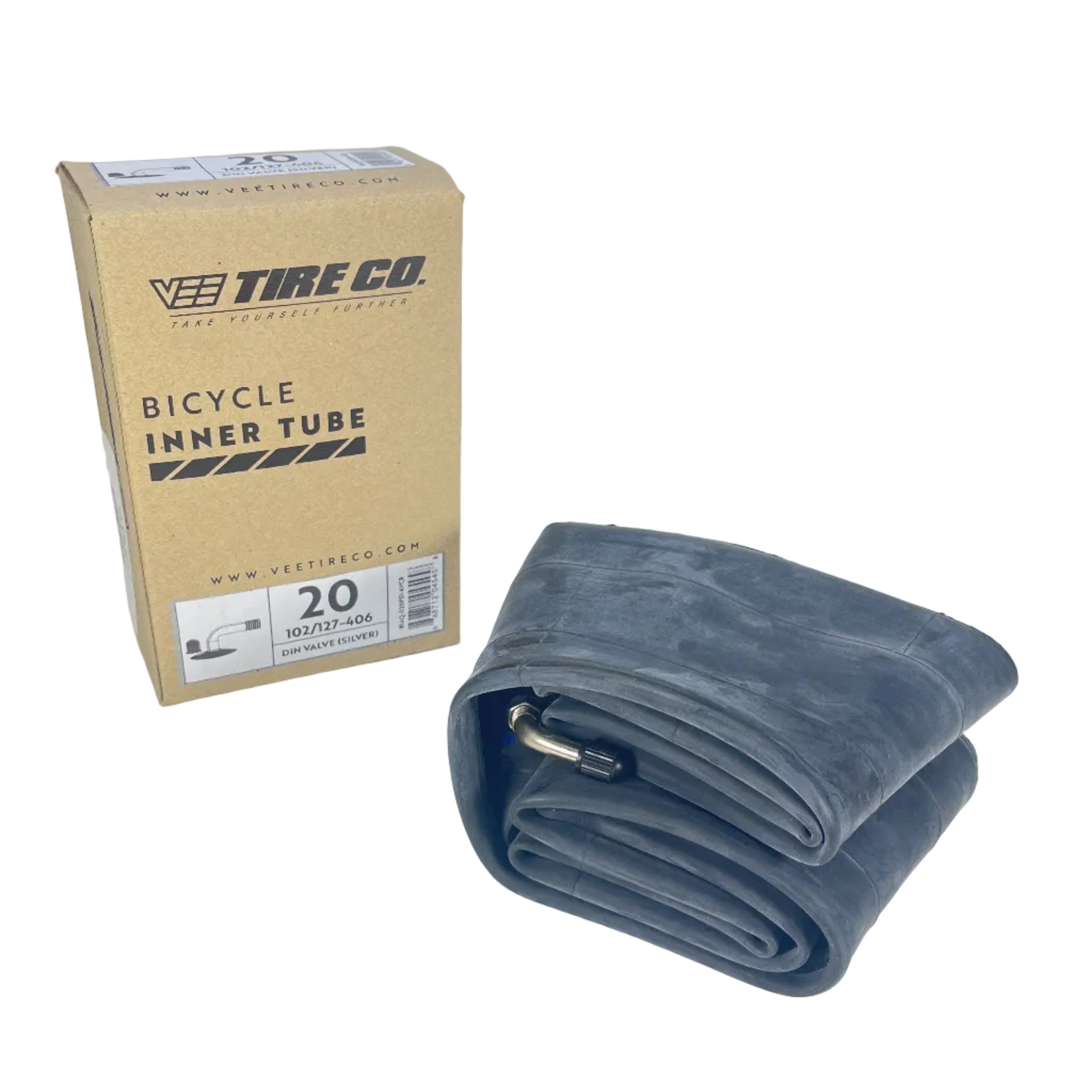

Vee Tire 20x4.00-5.00 Inner Tube - 90° Schrader Valve
Description

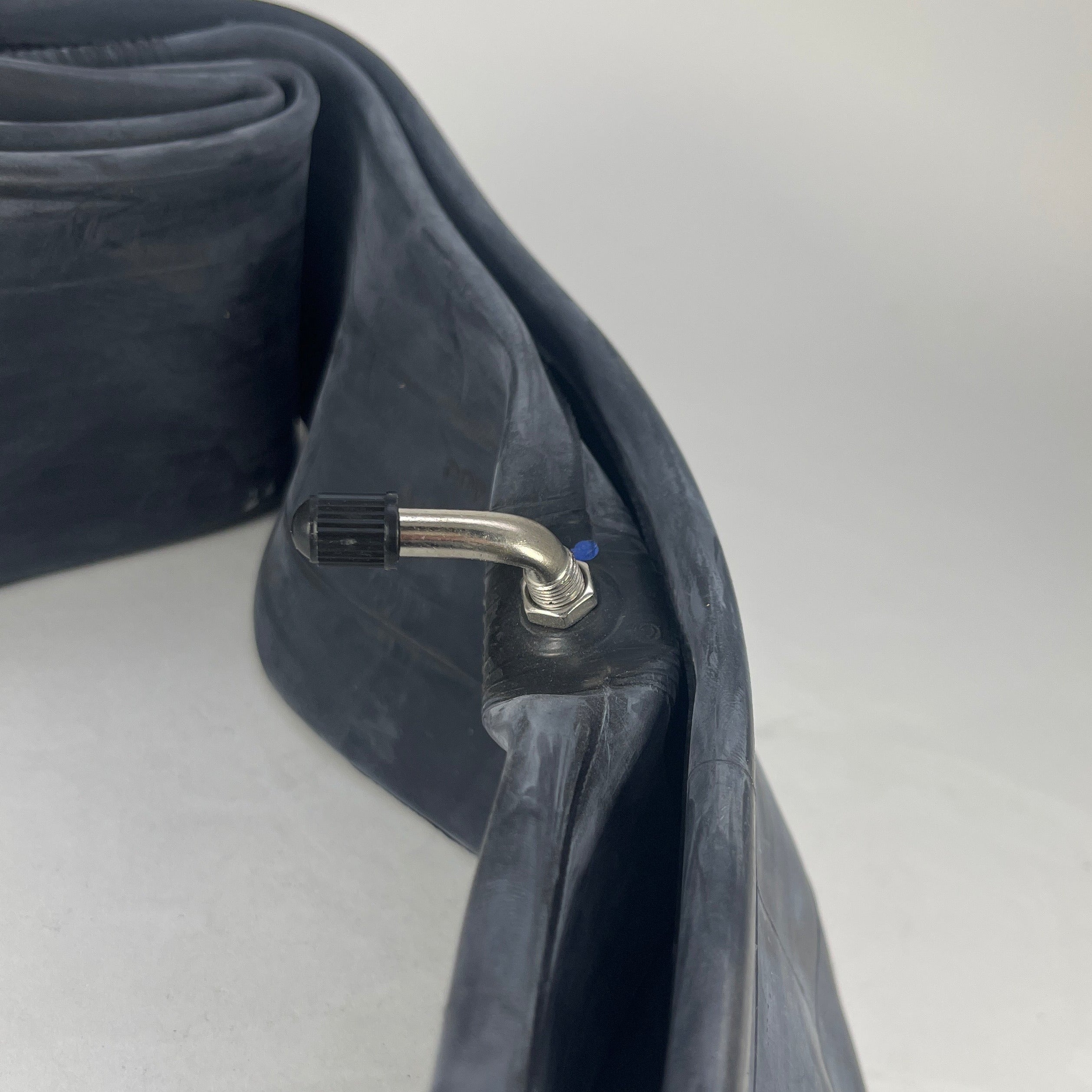

This Vee Tire 20-inch fat bike inner tube keeps your adventures rolling with fitment for 20x4.00 through 20x5.00 tires and a 90° DIN7788 valve. Its heavy-duty butyl rubber construction provides air retention and pinch-flat resistance for fat bikes and electric fat bikes, while the angled valve offers an alternative to a straight stem where your wheel setup requires it.
Key Features
- Fat-tire size range: Fits 20x4.00 through 20x5.00 tires.
- Angled valve: 90° DIN7788 valve; check valve-hole compatibility and clearance before ordering.
- Heavy-duty butyl rubber: Built for air retention and pinch-flat resistance.
- Versatile replacement: Suitable for matching fat-bike and electric fat-bike wheel configurations.
Technical Specifications
- Brand: Vee Tire
- Part number: 136-130
- Product type: Inner tube
- Tire size range: 20x4.00–20x5.00
- ETRTO size range: 102–127 × 406
- Included sizes: 20x4.00, 20x4.25, 20x4.50, 20x4.75 and 20x5.00
- Valve: 90° DIN7788
- Material: Heavy-duty butyl rubber
- Country of origin: Thailand
Compatibility
Fits 20-inch fat-bike tires in the 4.00–5.00-inch width range when the rim and valve opening accommodate the 90° DIN7788 valve. The following model applications require the matching tire size and valve configuration.
| Brand | Model applications to check |
|---|---|
| Super73 | Z1, S1, S2, R, RX Series |
| Macfox | X1S, X7, X2 |
| Rad Power Bikes | RadRunner, RadExpand |
| Lectric eBikes | XP 2.0, XP 3.0, XP Step-Thru |
| Juiced Bikes | Scrambler, HyperScrambler, RipCurrent |
Verify the tire sidewall size, rim compatibility, valve opening, and clearance for the 90° valve before ordering. A model name alone does not confirm fitment; this tube is for 20x4.00–20x5.00 tire configurations.
Product Diagrams
-
